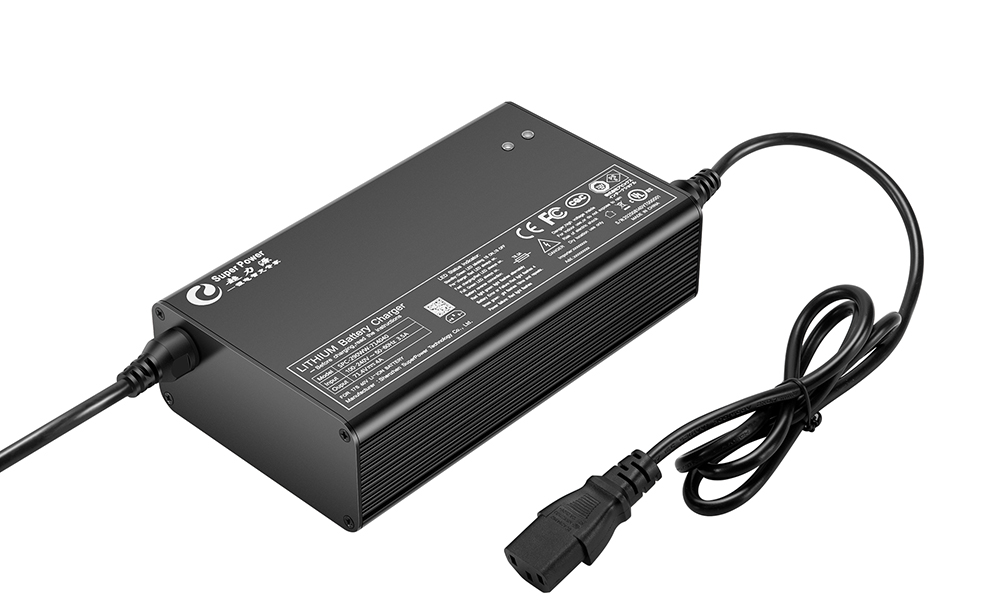

SPC-290W
| SPC-290 Series Chargers with Global Certificates | |||||
| Certificates: CB, UL, CE, PSE, KC, SAA, etc. | |||||
| Product details | |||||
| Input Voltage | 100V ~ 240Vac / 50 ~ 60Hz | ||||
| Output rated current | 8A | 6.5A | 5A | 4A | 3A |
| Output voltage range | 21 ~ 29.4V | 30 ~ 43.8V | 39 ~ 58.8V | 48 ~ 73V | 57 ~ 87.6V |
| Output current range | 4 ~ 8A | 4.5 ~ 6.5A | 3 ~ 5A | 2.5 ~ 4A | 2 ~ 3A |
| Battery Nominal Voltage | 24V | 36V | 48V | 60V | 72V |
| Output efficiency | ≥91% | ||||
| Output voltage accuracy | 1% | ||||
| Output current accuracy | 1% | ||||
| PFC | ≥0.95 | ||||
| Protections | Over current protection, Over voltage protection, Over temperature protection, Short-circuit protection, Reverse polarity protection, Timing protection | ||||
| IECEE Test | 60335-2-29:2016 ; IEC 60335-1:2010+A1+A2 | ||||
| UL Test | UL 1012 , CAN/CSA-C22.2 No. 107.2-01 | ||||
| EMC Test | EN 55014-1:2017 , EN 61000-3-2:2014 , EN 61000-3-3:2013, EN 55014-2:2015 | ||||
| Dimension | 195*114*54mm | ||||
| More models with different output voltage & current are available | |||||
