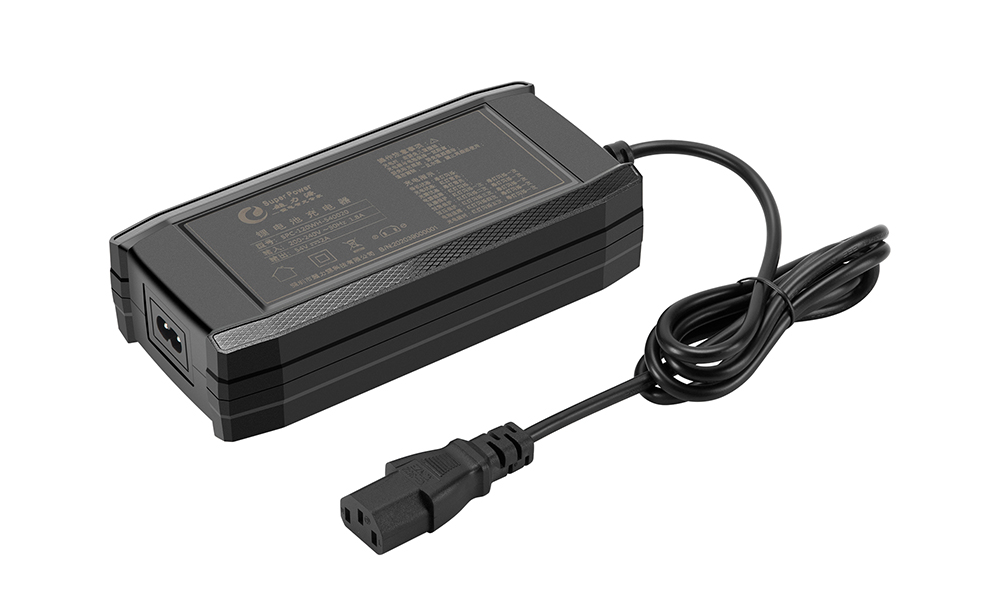

SPC-120W
| SPC-120 Series Chargers with Global Certificates | ||||
| Certificates: CB, UL, CE, PSE, KC, SAA, etc. | ||||
| Product details | ||||
| Input Voltage | 100V ~ 240Vac / 50 ~ 60Hz | |||
| Output rated current | 6A | 5A | 2A | 2A |
| Output voltage range | 9 ~ 16.8V | 21 ~ 29.4V | 30 ~43.8V | 39 ~ 58.8V |
| Output current range | 4 ~ 6A | 3 ~ 5A | 1.5 ~ 2A | 1.5 ~ 2A |
| Battery Nominal Voltage | 12V | 24V | 36V | 48V |
| Output efficiency | ≥88% | |||
| Output voltage accuracy | 1% | |||
| Output current accuracy | 1% | |||
| PFC | ≥0.95 | |||
| Protections | Over current protection, Over voltage protection, Over temperature protection, Short-circuit protection, Reverse polarity protection, Timing protection | |||
| IECEE Test | 60335-2-29:2016 ; IEC 60335-1:2010+A1+A2 | |||
| UL Test | UL 1012 , CAN/CSA-C22.2 No. 107.2-01 | |||
| EMC Test | EN 55014-1:2017 , EN 61000-3-2:2014 , EN 61000-3-3:2013, EN 55014-2:2015 | |||
| Dimension | 172*84*42mm | |||
| More models with different output voltage & current are available | ||||
